RS485 RFID Reader
Introduction to the product

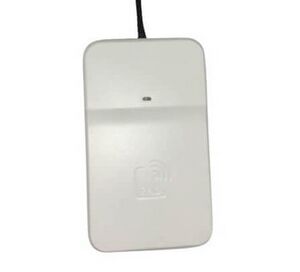

RRHFOEM07G is a low cost multiprotocol RFID reader with inbuilt antenna. It operate on extended voltage range with special features like reverse voltage protection & high voltage protection. It comes with auto inventory mode & SDK mode. RRHFOEM7G can be made available with any one of the given interfaces. It operates on 13.56 MHz and is compatible with ISO 14443A & ISO 15693 protocol. Customization requests would be considered
Product Specifications
| Parameters | Value |
|---|---|
| Operating Frequency | 13.56 MHz |
| Tag Supported | Mifare / I-code |
| Supply voltage | 9V to 30V DC |
| Oprating Current | 100mA max |
| Read Range | Upto 80 mm |
| Available Interface | RS485 |
| Indicators Features | Buzzer, LED for power & read |
| Weight | Approx 56 gms |
| Operating Temp | 0° to 65°C |
| Dimension | 104X63X15 mm |
| Baudrate | 9600* |
| Wiring | Red - Power supply
Black - Ground
Yellow - RS485-
Green - RS485+
|
| Supported by | DISCOVERY-226A, DISCOVERY-296A |
